CONNECTORS & RECEPTACLES
FAX: 773 792-2129 EAC RECEPTACLES
* Please visit the product pages on our website for the most up-to-date product information
EAC RECEPTACLES (continued)
SERIES EAC
71

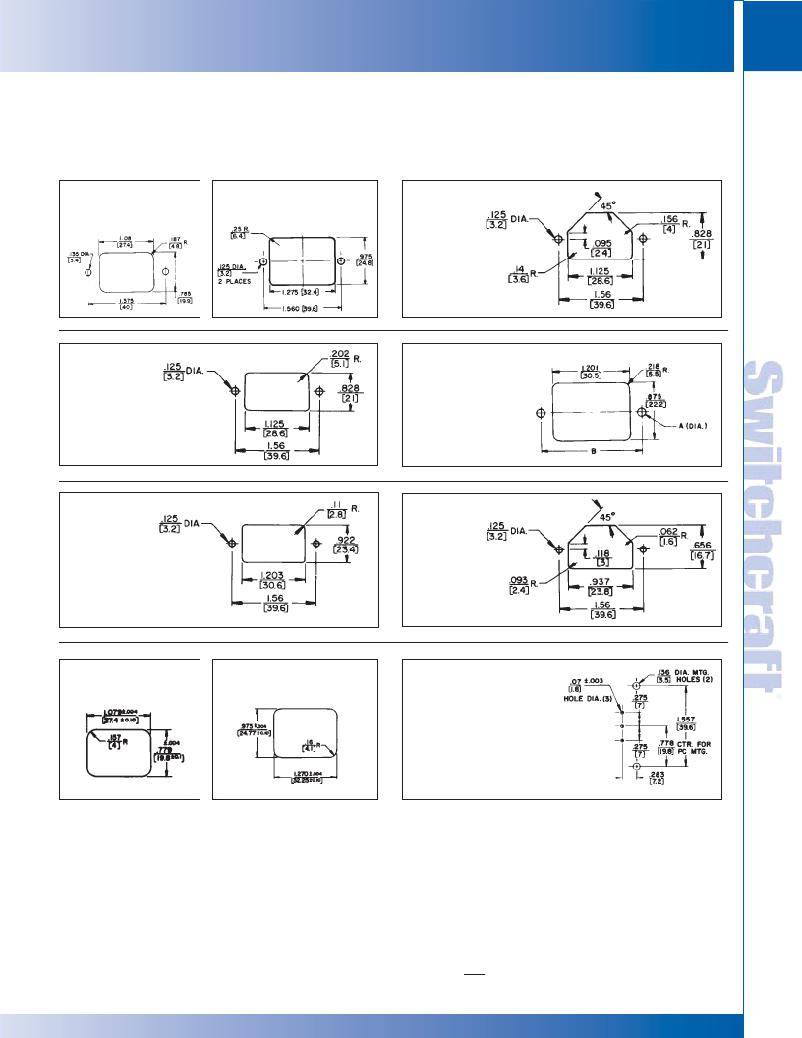

Front Mount
EAC227, EAC309,
EAC311, EAC315,
EAC319, EAC327
Front Mount
EAC323
Figure 4
Front Mount
EAC225
Figure 5
Snap-in Mount
EAC409, EAC411
Front Mount
EAC305
Figure 2
Snap-in Mount
EAC405, EAC451, EAC453,
EAC455, EAC457
Rear Mount
EAC323
Figure 6
EAC233, EAC309,
EAC311, EAC315,
EAC319, EAC327,
EAC333
Figure 7
Rear Mount
EAC325
Figure 9
Recommended
PC Board Layout
EAC233, EAC333
Figure 10
Note: Center .07 inch diameter
hole not used for 233, 234
Note: Unless otherwise specified, all dimension tolerances are ± .01" (+0.25 mm)
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
